Description

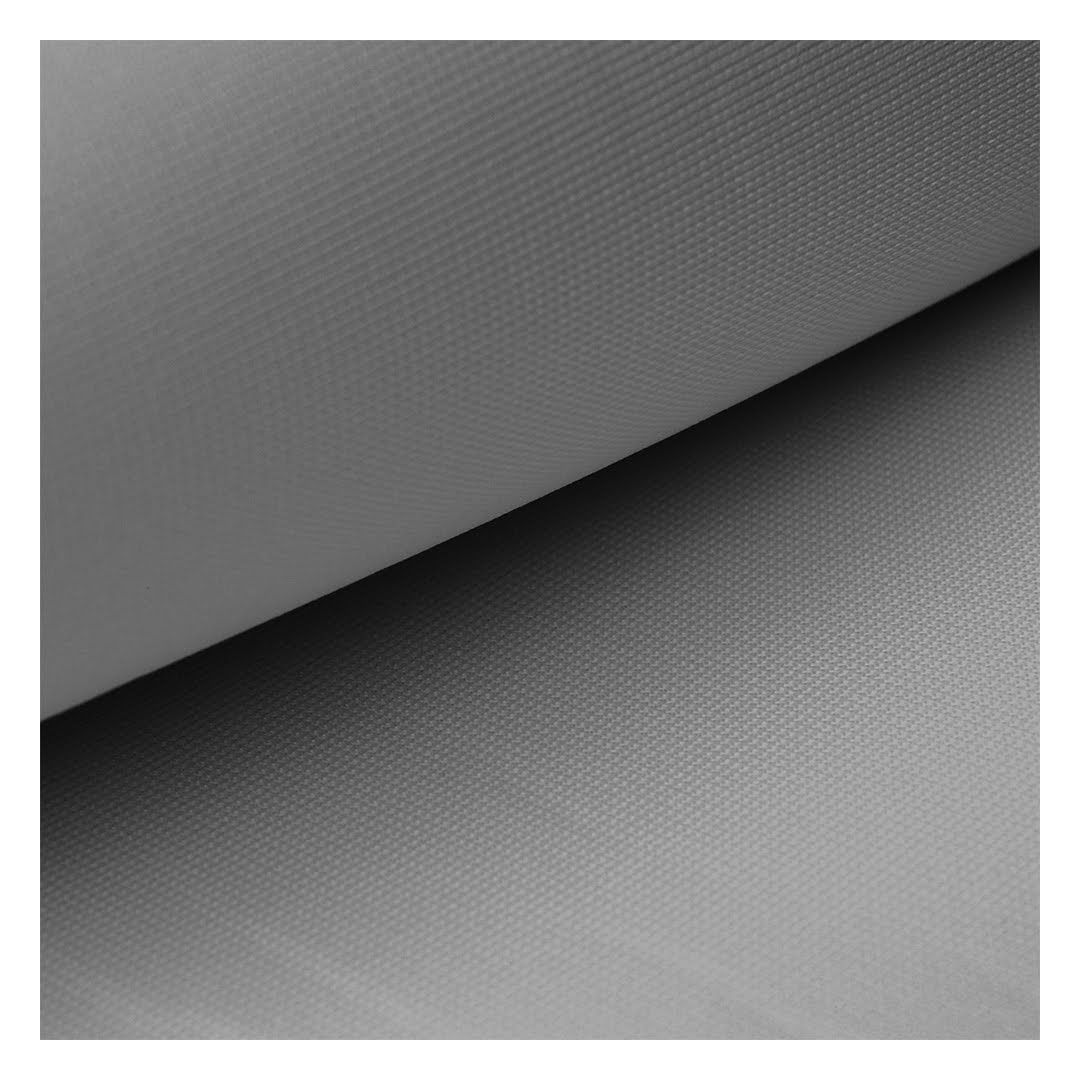

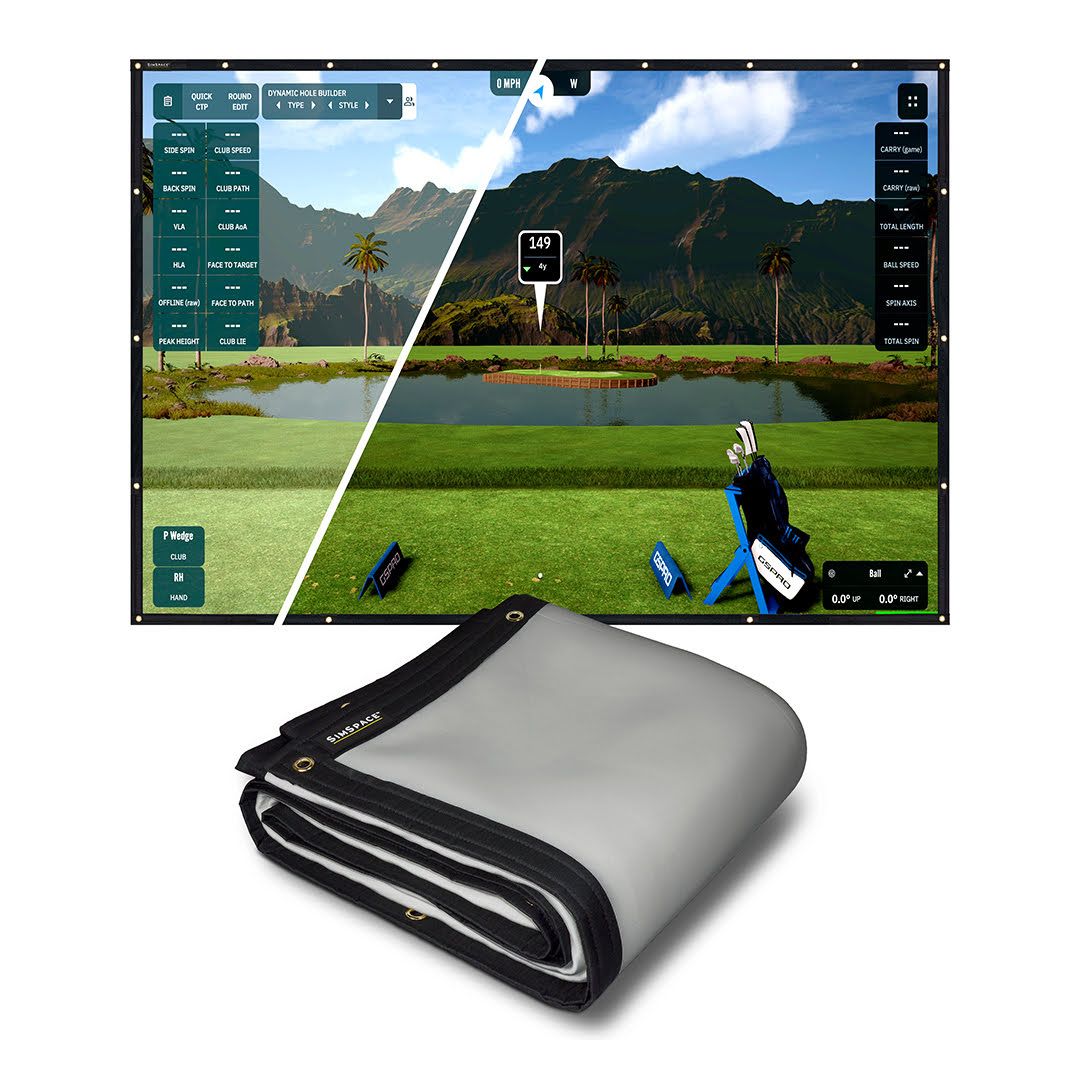

TeQers – Golf Simulator / Grey High-Contrast (Screen Only)
Key Features
- Triple-Layer Impact Screen: The enclosure uses a “silent HD screen” with a triple-layer woven construction polyester 480gsm impact screen. This specific design reduces impact sound, making it ideal for indoor practice.
Material Specifications
| Component | Material | Attributes |
| Impact Screen | Multi-layer Polyester Mesh | 4K-ready, sound-dampening, and high-impact resistant. |
Operational Attributes
- Tensioning System: The screen is secured using ball-bungees through metal grommets, ensuring a taut, flat projection surface while providing the necessary “give” to reduce ball bounce-back.
- Noise Reduction: The specialized multi-layer screen fabric is specifically designed for a low decibel rating upon impact, which is a critical attribute for residential simulator setups.
- Versatile Mounting: The enclosure fabric secures to the frame with Velcro, allowing for easy adjustments and a clean, seamless finish.
Impact Screen:
A 480gsm (grams per square metre) golf impact screen is a high-density, heavy-duty surface specifically engineered for high-performance golf simulators. This weight typically indicates a triple-layer or “3D spacer” construction, which provides superior durability, noise dampening, and image quality compared to lighter single-layer screens.
Core Attributes and Performance
- High Impact Resistance: The 480gsm density allows the screen to withstand ball speeds up to 250 mph. This heavy-duty polyester material is designed for both high-end home setups and commercial environments that see frequent use.
- Triple-Layer “3D Spacer” Construction: Unlike thin screens, this material uses a sandwich-like structure. The middle layer of vertical spacer yarns acts as a cushion, which significantly reduces ball bounce-back and absorbs kinetic energy to prevent the ball from rebounding dangerously.
- Noise Dampening: Due to its thickness and internal cushioning, 480gsm screens are roughly 60% quieter than standard single-layer screens. This makes them ideal for indoor garages or rooms where loud impact sounds might disturb others.
- Projector Image Quality: The high-density weave offers a smooth, bright white surface that minimizes light “bleed-through” (where light passes through the screen instead of reflecting). This attribute is critical for displaying 4K and Ultra HD resolutions with crisp, vivid detail.
Physical Specifications and Installation
- Material Composition: Usually 100% heavy-duty commercial grade polyester with a fine mesh weave.
- Reinforced Edging: Professional 480gsm screens often feature black vinyl bordering with double-stitched seams to prevent fraying and handle the high tension required for a flat projection surface.
- Mounting Hardware: These screens typically include stainless steel grommets (eyelets) spaced approximately 30cm apart across the top and 50cm along the sides to allow for secure mounting via ball bungees.
- Safety & Containment: When integrated into an enclosure, the 480gsm screen serves as the primary safety barrier, containing high-velocity shots and protecting the walls behind the unit.
Maintenance and Longevity
- Lifespan: While impact screens are considered “disposable” parts, a 480gsm screen is built for longevity, often rated for over 100,000 impacts.
- Prolonging Use: To extend the screen’s life, it is recommended to use ball bungees rather than rigid ties (to allow for “give”) and to ensure golf balls are clean and free of scuffs, which can act like sandpaper on the fabric.
